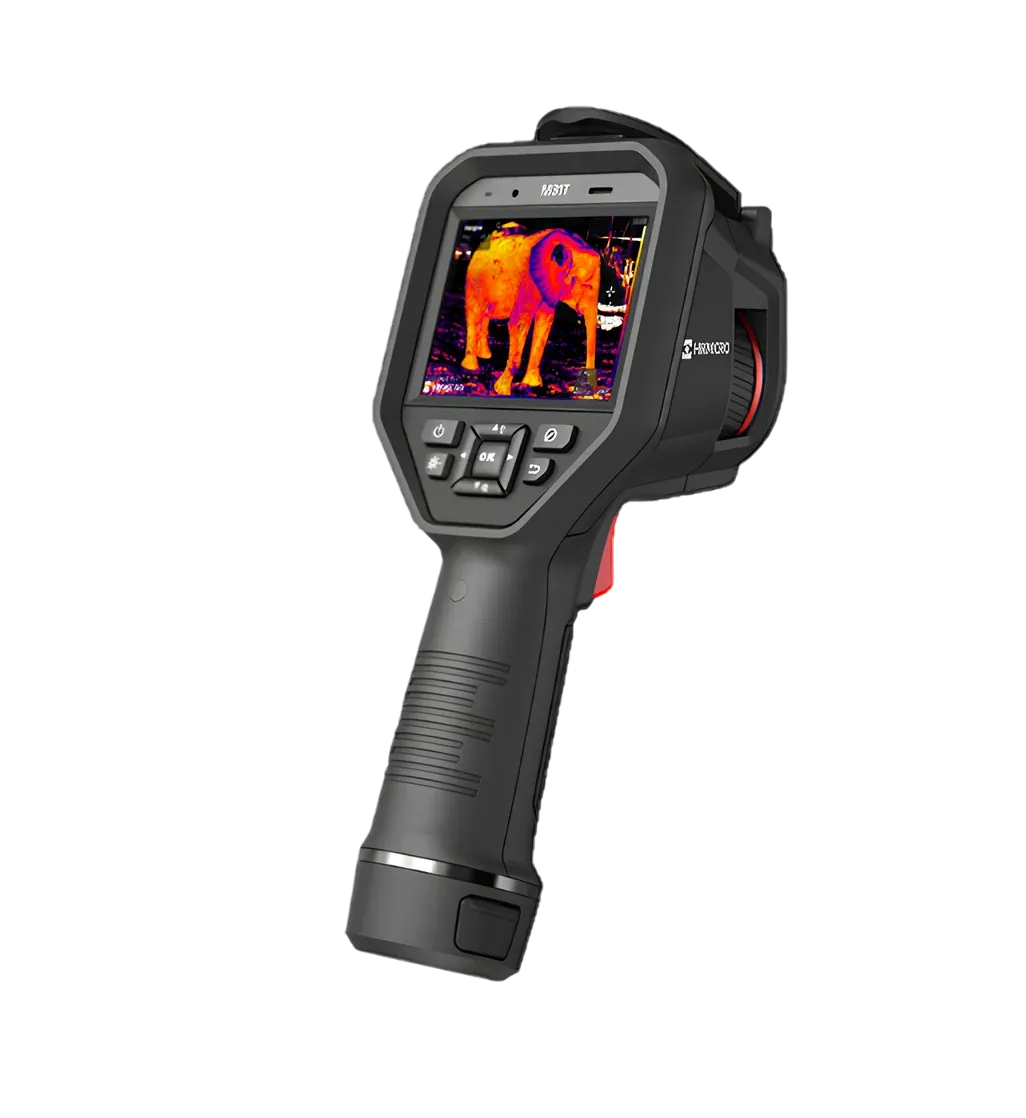

HIKMICRO M31T Handheld Thermography Camera — Skin Temperature Thermal Imaging Camera
When “does that feel hotter to you?” isn’t good enough
If you work in sports science, physiotherapy, veterinary care, or applied research, you already know the limits of assessing skin temperature by touch or guesswork.
Inflammation, muscle overload, circulatory issues, and early-stage injury often show up as subtle temperature shifts — sometimes less than a degree — well before pain, swelling, or a scan confirms anything. By the time it’s obvious to the naked eye or a fingertip, the athlete has usually already missed the window where a quiet adjustment to load or recovery would have prevented a bigger problem.
The trouble is that most thermal cameras on the market are built for the wrong job. Electrical and building-inspection thermal cameras are tuned for a huge dynamic range — think −20°C to 650°C — because they’re hunting for overheating breakers and missing insulation. That wide range comes at a cost: precision within the narrow band that actually matters for skin work gets diluted.
A general-purpose thermal camera might tell you a knee is “warmer” than the other one. It won’t reliably tell you it’s 0.6°C warmer, and in skin-surface assessment, that’s often the number that matters.
Built for skin, not switchboards
The HIKMICRO M31T takes a different approach. Rather than adapting an electrical inspection camera for medical and sports use, HIKMICRO developed it in direct partnership with ThermoHuman — a Spanish sports-medicine technology company whose software is already used by thermography-trained health and performance professionals.
The brief was narrow and deliberate: build a camera that measures living skin surfaces accurately, repeatably, and at a price point that puts proper thermography within reach of clinics and sports science departments that couldn’t previously justify the cost of specialist medical thermal imaging equipment.
That focus shows up directly in the spec sheet. The M31T’s object temperature range is locked to 5°C–40°C — deliberately narrower than its electrical-inspection siblings — because that’s the band human and animal skin actually occupies.
Within that band, it holds accuracy to a maximum of ±0.5°C (ambient 15°C–35°C), roughly four times tighter than the ±2°C typically quoted on general-purpose industrial thermal cameras. For practitioners tracking subtle asymmetry between left and right limbs, or monitoring a recovery trend over weeks, that precision is the difference between a useful dataset and a shrug.
What’s under the hood
The thermal side runs a 384×288 (110,592-pixel) detector with HIKMICRO’s SuperIR processing scaling captured images up to 768×576 for sharper detail when you’re reviewing a scan later.
NETD is rated below 35 mK at 25°C, so the sensor is sensitive enough to pick up the kind of fine temperature gradients that separate healthy tissue from an inflamed or overloaded area. A 6.4 mm F1.0 lens delivers a 41.1° × 30.5° field of view and focuses down to just 0.1 m — close enough for detailed work on smaller areas like hands, ankles, or a horse’s fetlock, without losing the wider view needed for a full-limb or full-body scan.
Alongside the thermal detector sits an 8MP visual camera, giving you Thermal, Visual, Fusion, Picture-in-Picture, and Blending modes on the same 3.5″ touchscreen.
Fusion and PIP modes matter more here than they might on an electrical inspection job — being able to overlay the thermal read directly onto the visible anatomy makes it far easier to document exactly where an asymmetry sits and to explain findings to a client, athlete, or referring practitioner without them needing to interpret a colour gradient in isolation.
Measurement tools cover centre spot, hot spot, and cold spot readings, plus up to 10 user-definable spots, a line, five rectangles, and five circles — enough to build a repeatable protocol across a session (left knee, right knee, lumbar region, and so on) rather than hunting for a single reading each time.
Auto, manual, and 1-tap level-and-span modes on the touchscreen let you sharpen contrast on the fly when you need to isolate a specific temperature band.
Built to survive a clinic, a pitch, or a paddock — not just a lab
A camera that lives in a kit bag between a clinic, a training ground, and an equine yard needs to hold up. The M31T is IP54-rated against dust and water ingress and drop-tested to 2 m, with vibration and shock ratings (2g / 25g) that sit above its electrical-inspection siblings in the same M-Series family — a sign it’s built with more field handling in mind.
Two interchangeable, rechargeable Li-ion batteries and a charging base come standard, giving you a spare ready to go rather than waiting out a charge cycle mid-session. Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 connect to the HIKMICRO Viewer app for transferring images and building reports on the spot, and a 64GB microSD card (expandable) handles image and radiometric video storage — HIKMICRO rates the card for roughly 100,000 stills or up to 400 hours of standard video.
Voice notes (up to 60 seconds), text notes (up to 200 characters), QR codes, picture notes, tags, and sketches all attach directly to a capture, so a scan doesn’t end up as an orphaned image file with no context by the time you’re writing up a report a week later.
What’s in the box
Every M31T ships with the camera, a wrist strap, two interchangeable batteries, a 64GB microSD card, a charging base with UK/US/AU/EU adaptor plugs, a 2-in-1 USB-C cable, a hard carrying case, a factory calibration certificate, and a quick start guide — everything needed to start scanning on day one, with nothing extra to track down.
Who reaches for the M31T
- Sports scientists and strength & conditioning staff tracking load-related asymmetry and flagging overuse risk before it becomes an injury
- Physiotherapists and allied health practitioners documenting inflammation patterns and recovery progress with objective, repeatable imagery rather than a verbal description
- Veterinary and equine professionals screening for lameness, saddle-fit issues, and soft-tissue strain across a horse or working animal’s limbs and back
- Researchers and university departments running thermography-based studies where consistent, well-documented capture protocols matter for data integrity
Backed by a 3-year warranty
HIKMICRO backs the M31T with a 3-year warranty on the full product, 10 years on the detector, and 2 years on the battery — the same structure HIKMICRO applies across its professional M-Series line, reflecting confidence in the core thermal module even as accessories wear over time.
If you’re weighing up whether the M31T’s tight 5°C–40°C precision fits your workflow, or whether a wider-range M-Series camera suits your application better, get in touch with the RT team — we’ll help you match the right thermal camera to the job rather than the other way around.
What is the HIKMICRO M31T used for? The HIKMICRO M31T is a handheld thermal imaging camera purpose-built for measuring human and animal skin-surface temperature.It was co-developed with sports-medicine technology company ThermoHuman for use by sports scientists, physiotherapists, researchers, and veterinary professionals tracking temperature asymmetry, inflammation, and recovery.
How accurate is the HIKMICRO M31T? The M31T measures to a maximum accuracy of ±0.5°C within an ambient temperature range of 15°C to 35°C, across an object temperature range of 5°C to 40°C — a tighter tolerance than general-purpose industrial thermal cameras, which typically quote ±2°C.
Can the HIKMICRO M31T be used for electrical or industrial inspection? No. The M31T’s object temperature range is fixed at 5°C to 40°C, which suits human and animal skin-surface work but doesn’t cover the higher ranges needed for electrical fault-finding or industrial hotspot detection. For that application, HIKMICRO’s M30, M31, or M60 cameras (with ranges up to 650°C) are the better fit.
What’s included with the HIKMICRO M31T? The M31T ships with the camera, a wrist strap, two interchangeable batteries, a 64GB microSD card, a charging base with UK/US/AU/EU plug adaptors, a USB-C cable, a hard carrying case, a factory calibration certificate, and a quick start guide.
Is the HIKMICRO M31T a medical device? The M31T is positioned by HIKMICRO and ThermoHuman as a research and screening tool for sports science, physiotherapy, and veterinary professionals rather than a diagnostic medical device. Check with RT for current regulatory guidance relevant to your specific use case.
