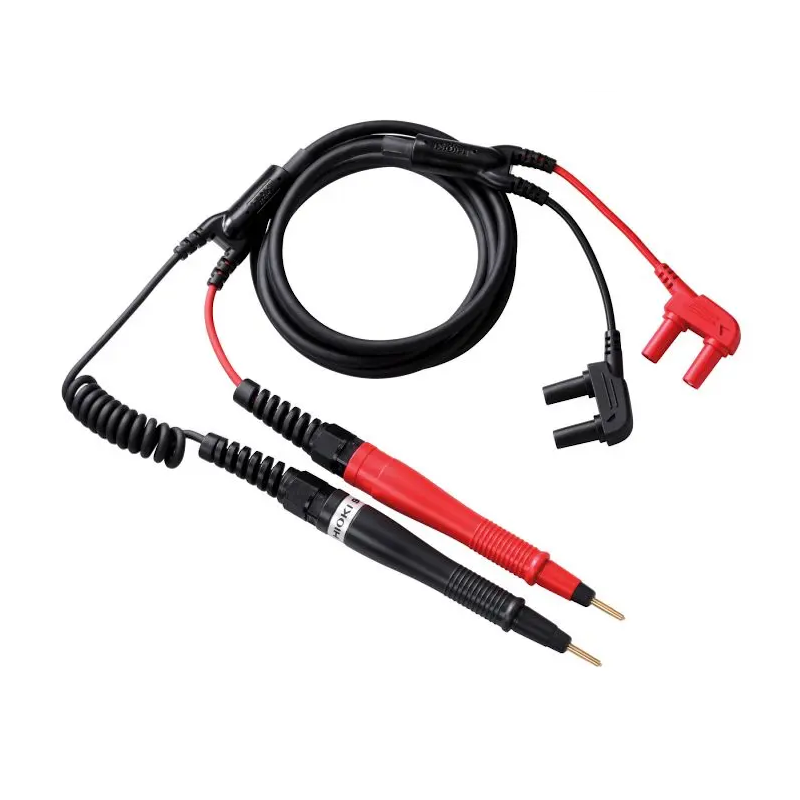

Hioki 9465-10 Straight Test Lead with Pogo Pins for BT3554 & RM3548

Hioki 9465-10 Straight Test Lead features pogo pin tips, a 1900 mm length, and 60 VDC max voltage.

They ideal for precise battery and resistance testing, it offers high durability with replaceable tips and easy access to hard-to-reach areas.

Thet are perfect for BT3554 and RM3548 testers.

Hioki-9465-1011-User-Manual

Categories: Accessories, HIOKI Tags: Hioki, Test Leads/Probes Brand: Hioki

Description
Specification

Hioki 9465-10 Straight Test Lead with Pogo Pins – Your Ideal Solution for Accurate Battery and Resistance Measurements

Looking for a precise and reliable test lead for battery and resistance testing? The Hioki 9465-10 Straight Test Lead with Pogo Pins is designed to deliver exceptional performance for professionals using the BT3554 portable battery tester and the RM3548 portable resistance meter.

This high-quality straight pin test lead is equipped with advanced features to ensure accuracy and ease of use, even in challenging environments.

Why Choose the Hioki 9465-10 Test Lead?

The Hioki 9465-10 stands out for its innovative coaxial design paired with gold-plated pogo-pin tips. These features are perfect for taking measurements on small or hard-to-access battery contacts.

With a maximum voltage rating of 60 VDC and an impressive total length of 1900 mm, this test lead offers the flexibility and durability you need for precise, hassle-free measurements.

Key Features & Benefits

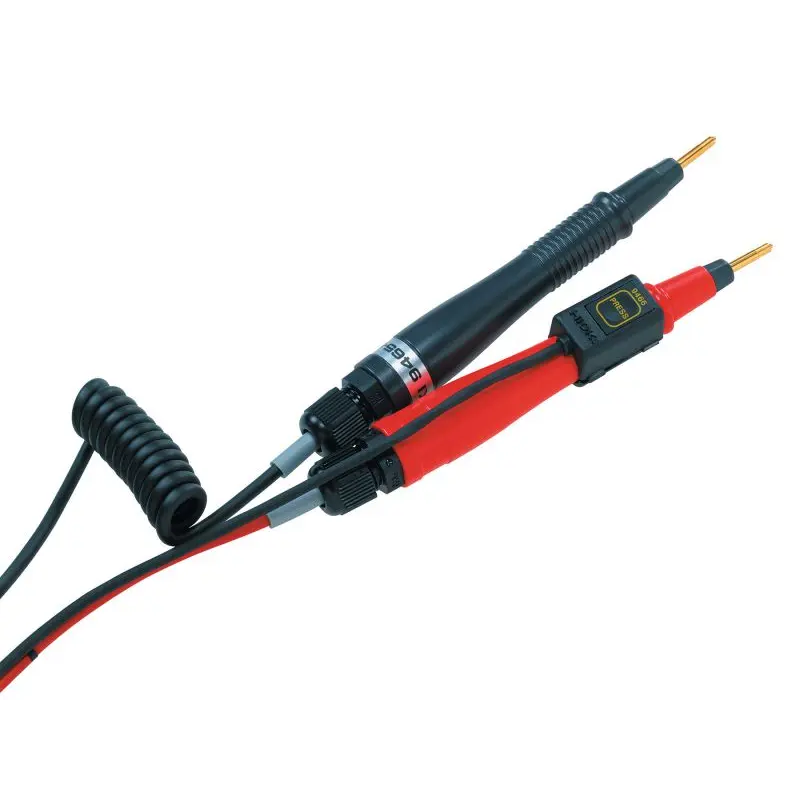

Straight Pogo-Pin Tips for Hard-to-Reach Areas
The 2.9 mm diameter pogo-pin tips with a coaxial structure (featuring a SENSE terminal in the center and a SOURCE terminal on the outer edge) allow for measurements in tight spaces. This includes battery contacts with limited accessible surfaces or through inspection holes in battery connector covers—without needing to remove the cover.
Superior Performance for Battery and Resistance Testing
Designed to work seamlessly with the Hioki BT3554 series battery testers and the RM3548 resistance meters, the 9465-10 ensures efficient and accurate measurements every time.
Durable and Long-Lasting Design
Built for longevity, the probe tips are replaceable (replacement tip model: 9465-90), extending the life of your test lead and providing cost-effective reliability.
Flexible and Versatile Length
With a total cable length of 1900 mm, including split-to-probe lengths of approximately 100 mm (red) and 550 mm (black), the test lead provides ample reach and flexibility for various test setups.
High Contact Precision
The pogo-pin tips offer consistent contact pressure (190 g initial, 250 g total, stroke 1 mm), ensuring reliable measurements with minimal effort.

Technical Details

Type: Straight test lead with pogo pins
Maximum Voltage Rating: 60 VDC
Total Length: 1900 mm
Pin Diameter: 2.9 mm, Length: 13.5 mm
Compatible Devices: Hioki BT3554 series (BT3554-50, BT3554-51, BT3554-52, BT3554-91, BT3554-92), RM3548 series, and more.

Applications and Use Cases

The Hioki 9465-10 is ideal for professionals working in battery maintenance, quality control, and resistance testing.

Whether you’re testing battery packs, inspecting battery contacts, or working with resistance meters, this test lead provides the accuracy and precision you need.

Upgrade Your Testing with the Hioki 9465-10
Don’t settle for less when it comes to battery and resistance testing. The Hioki 9465-10 Straight Test Lead with Pogo Pins combines durability, reliability, and precision—making it the perfect addition to your professional toolkit. Order now and experience seamless measurements with Hioki’s trusted quality.

Specification

Basic specifications

Accuracy guaranteed: 1 year

Maximum input voltage (*1)	DC 2000 V
Maximum rated line-to-ground voltage	1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V
Input resistance	20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open)
Overload protection	2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L)
OUTPUT terminal	4 mm banana terminal
Operating temperature and humidity range	Temperature: -25°C to 65°C (-13°F to 149°F)Humidity: −25°C to 40°C (−13°F to 104°F): 80% RH or less (non-condensing) 40°C to 65°C (104°F to 149°F): Linearly reduces from 80% RH or less at 40°C (104°F) to 25% RH or less at 65°C (149°F) (non-condensing)
Storage temperature and humidity range	-30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing)
Standards	EN 61010
Included accessories	Connection Cable Set L4943 ×1, Strap with buckle ×2, Strap ×1, Carrying Case C0205 ×1, Instruction Manual ×1, Operating Precautions ×1

Accuracy table for compatible instruments

Model	Combined accuracy
DT4261	Range 600.0 V: Combined accuracy ±0.5% rdg ±0.2 V Range 2000 V: Combined accuracy ±0.5% rdg ±5 V
CM4141-50 CM4371-50 CM4373-50 CM4375-50	Range 600.0 V: Combined accuracy ±1.0% rdg ±0.3 V Range 2000 V: Combined accuracy ±1.0% rdg ±3 V
DT4281 DT4282	Range 60.000 V: Combined accuracy ±0.8% rdg ±0.002 V (output rate 1/10) Range 600.00 V: Combined accuracy ±0.8% rdg ±0.02 V (output rate 1/10)
DT4252 DT4253	Range 60.00 V: Combined accuracy ±1.2% rdg ±0.05 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.5 V (output rate 1/10)
DT4255 DT4256	Range 60.00 V: Combined accuracy ±1.2% rdg ±0.03 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.3 V (output rate 1/10)
