  Hioki BT3554-51 Portable Battery Tester
Key Features
- Battery measurement can be performed while the battery is connected to its host device, without taking it offline
- Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
- Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage (*1)
- Noise reduction technology improves noise resistance
- Screen and audio (*2) guidance simplifies measurement
- Measurement data is linked to site information and saved, reducing management man-hours
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross (*3) or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- New protector delivers better ergonomic hold and durability in the field.

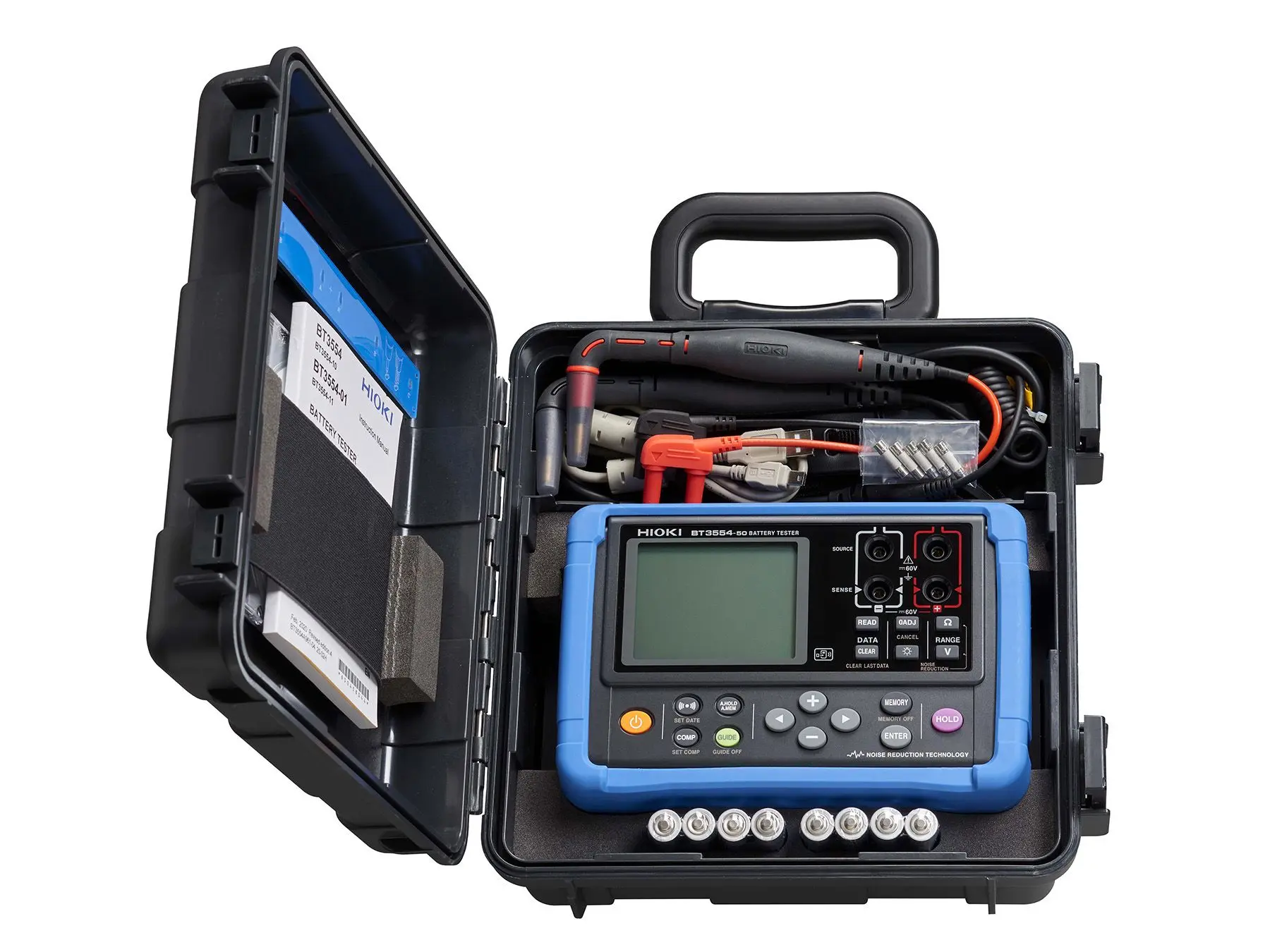

The portable battery tester Hioki BT3554-51 is a set consisting of the BT3554-50 instrument and the 9465-10 Straight Pin Type Lead.
This versatile tester supports two voltage ranges (6 V and 60 V) and four resistance ranges (3 mΩ to 3 Ω), ensuring compatibility with a wide variety of battery sizes and capacities.

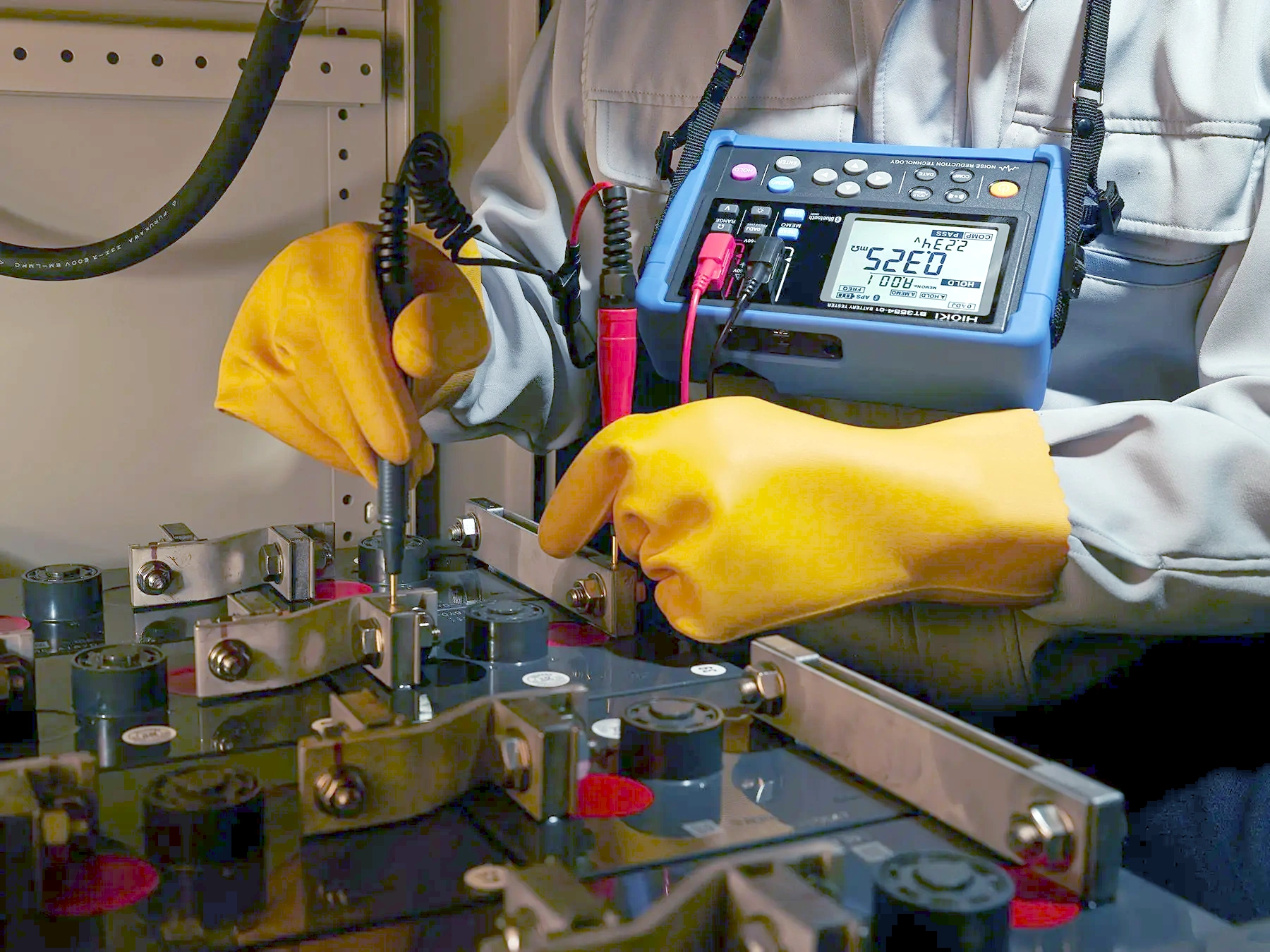

Batteries do not need to be disconnected from the system for measurement, which significantly simplifies the testing process and also saves time.
With a measurement speed of less than two seconds, this portable battery tester is ideal for use in tight or hard-to-reach areas. Additionally, HIOKI’s noise reduction technology ensures accurate measurements even in noisy environments. The integrated comparator function (PASS, WARNING, FAIL) provides instant assessment of the battery status based on user-defined thresholds.
Hioki BT3554-51 Simplifies your work load
The BT3554-51 simplifies work with its practical data management features. Up to 6000 measurement records can be stored in its internal memory, and when paired with the optional Z3210 Bluetooth adapter, measurement data can be wirelessly transferred to a smartphone or tablet. The free GENNECT Cross app enables real-time data analysis, report generation, and transfer of pass/fail profiles to the tester, enhancing efficiency for maintenance teams.
A USB interface allows the battery tester to connect to a PC for convenient management of measurement data. The free GENNECT One Windows software lets users control the device as well as transfer and process measurement values. Alternatively, measurement values can be sent directly to an Excel sheet by setting the battery tester as a Human Interface Device (HID) on the PC.
The wide range of measurement accessories includes various test leads for different battery contacts or test contacts as well as for diverse installation scenarios. The BT3554-51 is designed for field use and features convenient auto-hold and auto-memory functions that automatically detect new measurements and save results without requiring any input from the technician.
