HIOKI CM3286-50 AC Clamp Power Meter | True RMS Analyzer

The CM3286-50 clamp on power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency,

It can also detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.

    Hioki CM3286-50 Datasheet



Categories: , , Tags: , , Brand:

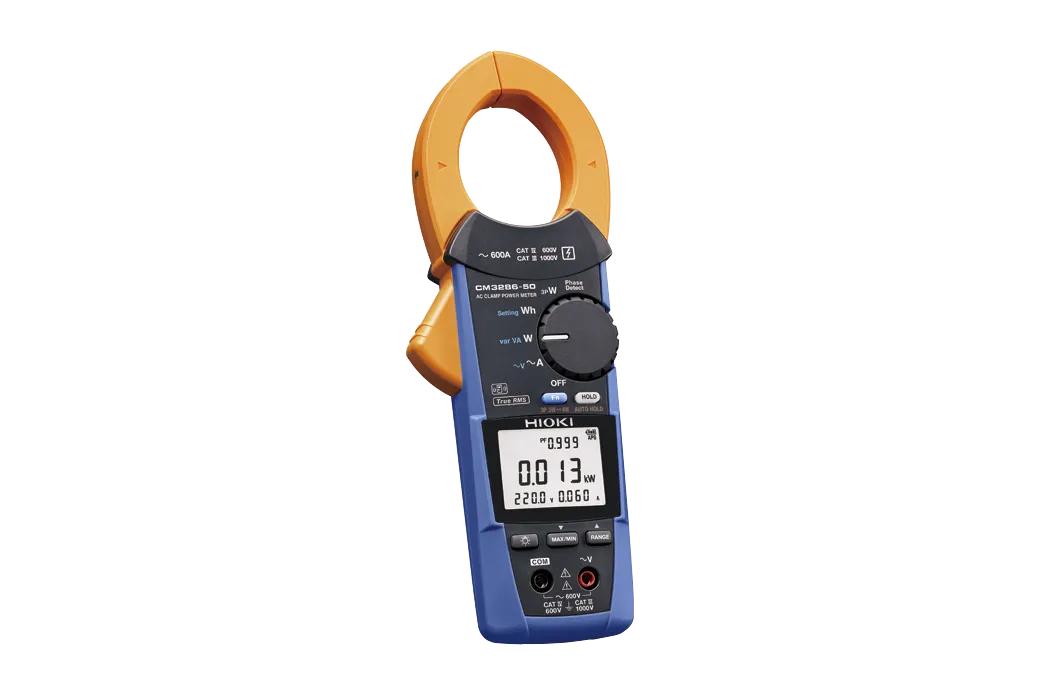

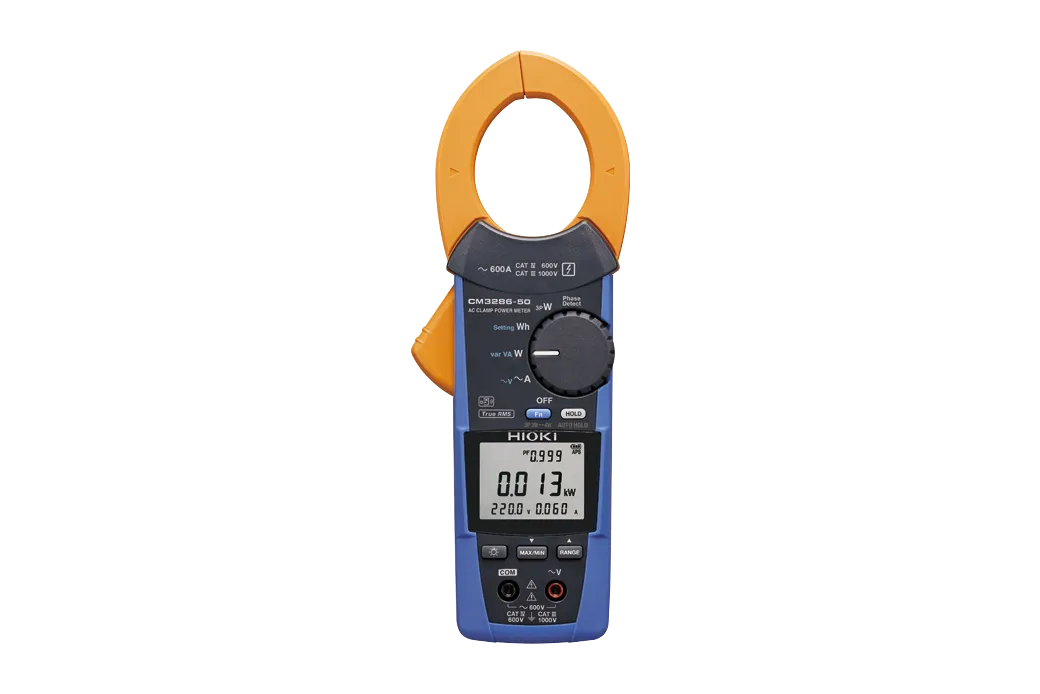

HIOKI CM3286-50 AC Clamp Power Meter

Key Features

  • Display four parameters simultaneously
  • A handheld power meter that measures from 5 W of power and 60 mA of current
  • Measure power ranging from 5 W at a low current of 60 mA to 360 kW
  • In addition to current, voltage, and power, measure simple integral power consumption and phase sequence
  • Features and functions deliver fast and efficient testing
  • Harmonic analysis from 1st to 30th order with GENNECT Cross (Wireless Adapter Z3210 is necessary)
  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file (Wireless Adapter Z3210 is necessary)

Easy! Just connect the Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready.

Wirelessly connect Hioki-compliant instruments with a simple connection.
Transfer measurements to your smartphone or tablet and quickly create reports with field photos and drawings.

Specifications

easurement line Single-phase, Three-phase (balanced with no distortion)
Measurement items Voltage, Current, Voltage/Current peak, Active/Reactive/Apparent power, Power factor, Phase angle (*1), Frequency, Simple Active Energy Consumption (Single-phase)

[With Z3210 installed (*2)] Voltage/Current harmonics
AC voltage range [Measurement range] 80.0 V to 600.0 V, Single range, Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
AC current range [Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
Power range [Single phase] 0.005 kW to 360.0 kW
Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1)
[Balanced three-phase 3-wire] 0.020 kW to 623.5 kW
Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1)
[Balanced three-phase 4-wire] 0.040 kW to 1080 kW
Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1)
Harmonic levels [With Z3210 installed (*2)] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
Other functions [Phase angle (*1)] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000
[Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, MAX/MIN/AVG value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc.
Dustproof and waterproof IP20 (Voltage measurement in a completely dry condition. When jaw closes)
IP50 (While in storage)
Power supply LR03 Alkaline battery ×2
Continuous use: approx. 25 hr (without Z3210 installed), approx. 18 hr. (with Z3210 installed and using wireless communications)
Other conditions: 100 A AC measurement, backlight off, 23°C reference value
Core jaw dia. φ 46 mm (1.81 in), Jaw dimensions: 92 mm (3.62 in) W x 18 mm (0.71 in) D mm
Dimensions and mass 65 mm (2.56in) W × 241 mm (9.49in) H × 35 mm (1.38in) D, 450 g (15.9 oz)
Included accessories Connection Cord L9257 ×1, LR03 Alkaline battery ×2, Carrying Case C0203 ×1, Instruction Manual ×2, Operating Precautions ×1
  • *1:Phase angle obtained from zero cross of current and voltage.
  • *2:Harmonics can be displayed with our free app GENNECT Cross.
