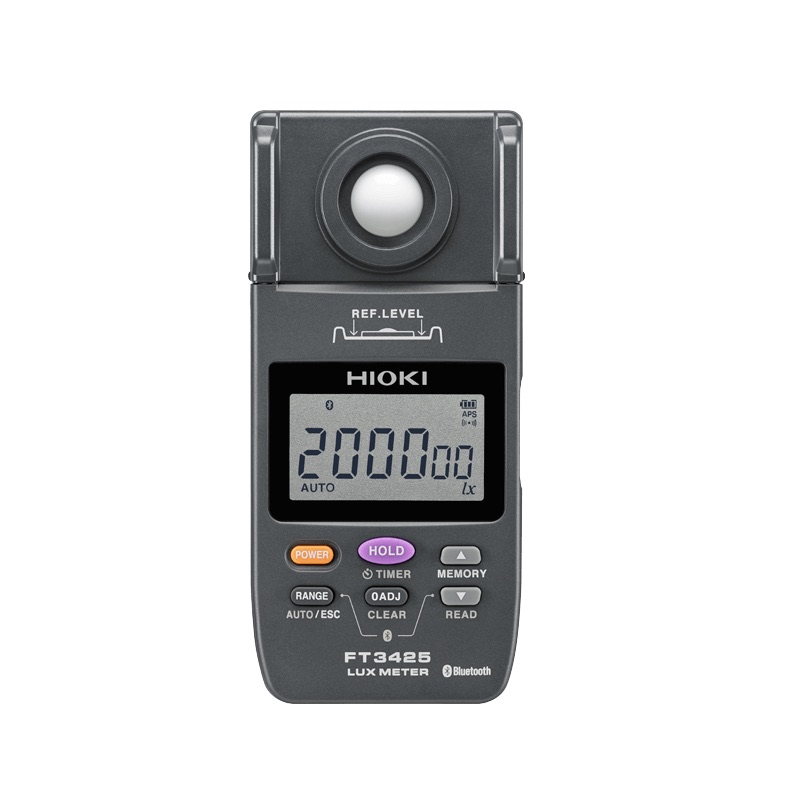

HIOKI FT3425 Lux / Light Meter with Bluetooth

The Hioki FT3425 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management.

Capable of testing even LED lighting, the FT3425 provides five measurement ranges, 20 lux to 200 000 lux, to support a wide range of luminance levels. It comes built in with Bluetooth® wireless technology.

Lux Meter FT3425 Datasheet

Category: Lux Meters Tags: Hioki, Light/LUX Meters Brand: Hioki

HIOKI FT3425 Lux-Light Meter with Bluetooth

The FT3425 is a light meter designed for a wide variety of applications, including illumination equipment, lighting work, and facility management.

The FT3425 can even test LED lights, and it is equipped with five measurement ranges, ranging from 20 lx to 200 000 lx, allowing it to measure luminance levels at a wide range of luminance levels. It also is equipped with Bluetooth® wireless technology.

How to measure lumens with a lux meter: Conducting Multi-Point Testing with the Extension Cart, An Easy Way to Conduct Lighting Inspections

A Z5023 Extension Cart is used to support the FT3424 and FT3425 Lux Meters, as it has casters to greatly improve the efficiency of multi-point light inspections.

To perform final building inspections for proper illuminance, normally two inspectors are required, and one is required to stand and crouch repeatedly to capture the correct data. By allowing just one technician to complete a job without physical burdens, the Z5023 saves time and effort.

Key Features

Measured illuminance data is automatically transmitted via Bluetooth® to smartphones and tablets.
Compatible with LED or OLED lighting.
Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class.
The timer hold feature enables you to take measurements remotely while avoiding shadows and reflections.
You can save up to 99 measured values in the internal memory of the instrument, then transfer them to a computer later for greater efficiency.
Hioki’s free app “GENNECT Cross” lets you transfer data to tablets and smartphones.

Specification

Accuracy guaranteed: 2 years, Accuracy guarantee period after adjustment made by Hioki: 2 years

Standards	DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class
Light receiving element	Silicon photo diode
Range selection	Auto/ Manual
Linearity	±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.)
Accuracy guarantee for temperature and humidity	21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing)
Response time	Auto range: within 5 seconds, Manual range: within 2 seconds
D/A output	Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.) Output accuracy: ±1% rdg. ±5 mV (at display count)
Functions	Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off , Buzzer sound, Backlight, Zero adjustment
Interfaces	USB 2.0 (FT3424/FT3425), Bluetooth® 4.0LE (FT3425 only)
Power supply	LR6 Alkaline battery ×2, Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC)
Continuous battery operation time	300 hours (when using LR6 batteries, with Bluetooth® OFF), 80 hours (when using LR6 batteries, with Bluetooth® ON)
Dimensions and mass (including the batteries)	78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, 310 g (10.9 oz, FT3424) / 320 g (11.3 oz, FT3425)
Accessories	Instruction Manual ×1, AA/LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 (only FT3425)

Measurement ranges

Range	Measurement range	Display steps
20 lx	0.00 lx to 20.00 lx	1 count step
200 lx	0.0 lx to 200.0 lx	1 count step
2000 lx	0 lx to 2000 lx	1 count step
20000 lx	00 lx to 20000 lx	10 count step
200000 lx	000 lx to 200000 lx	100 count step

Countries and regions where wireless operation is currently supported (FT3425)

Last update: May 7, 2021

Countries and regions where wireless operation is currently supported	Australia, Austria, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, Indonesia, Ireland, Israel, Italy, Japan, Kenya, Korea, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, New Zealand, Norway, Peru, Poland, Portugal, Romania, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States, Viet Nam
Note	Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law.

Features

Conduct lighting inspections more efficiently with Bluetooth wireless technology

This Hioki FT3425 Lux Meter is equipped with Bluetooth wireless technology, allowing you to inspect, record, and generate reports of lux data using the free GENNECT Cross mobile app, drastically cutting the amount of time you spend on things like data entry. The issues of not having enough time to test multiple locations or create accurate reports containing a large amount of data are no longer an issue.

Dramatically reduce illuminance testing work times!

Reducing illuminance testing work times by a great deal!

The FT3425 features Bluetooth® wireless technology that can be used with the GENNECT Cross smartphone app for robust support at each stage of the illuminance testing process, which includes taking measurements, recording results, and creating and submitting reports. Saving measured values on a completion drawing or photo taken with your smartphone can dramatically reduce the amount of time it takes to perform multipoint measurements, such as during electrical and lighting completion testing.

Create reports instantly with the free GENNECT Cross app

You can check and manage measurement results and create reports using GENNECT Cross, a free app designed specifically for Hioki measuring instruments.

In addition to photographing measurement sites, placing measurement results on photographs, and saving handwritten notes, the software offers a range of functionality for managing data in the field.

Repeated measurements are a breeze since there’s no need to squat down!

You won’t need to squat down again for repeated measurements!

This optional Extension Cart Z5023 has casters for easy mobility. By allowing the instrument to be moved without having to squat down, the physical burden associated with making repeated multipoint measurements is greatly reduced.

Measure illuminance free of the effects of shadows

1. Timer hold function

The measured value is retained after a user-configured period of time has passed since the time the TIMER key was pressed. In this manner, you can time lux meter measurements to occur after you have stepped away from the meter so that clothing and shadows will not affect the measurements.

Timer settings:

Select from 5 / 10 / 15 / 20 / 30 / 45 / 60 sec.

After the set time has elapsed, the measured value is retained. → The backlight turns on and the beep sounds for 3 sec.

2. Measurement with sensor and display units undocked

Displays and sensors can be undocked for more convenient use. Simply connect them with the Connection Cable L9820 (option).
